JSRP25-1000R Delta robot is a small high-speed 2+1 degree of freedom parallel robot, the robot and its surrounding IP69 protection design, using titanium alloy, stainless steel DIN1.4404(316L) design, very suitable for food production line.

Delta robot mechanics are the solution for two-dimensional movements with the possibility to add rotation. For payloads from 3 kg up to 125 kg, the D2s are the solution. The smaller D2s are often used in end-of-line packaging, cosmetics, consumer electronics and pharmaceuticals. The larger D2s are found in food packaging and other industries where higher payload solutions are required.

Johnson Smart provides versatile pick-and-place solutions, available as open robot mechanics compatible with any machine control platform, or as an integrated solution with B&R controllers in a Machine-Centric Robotics setup. This unique blend of design freedom and synchronized performance allows us to deliver the most effective solution tailored to your specific ap

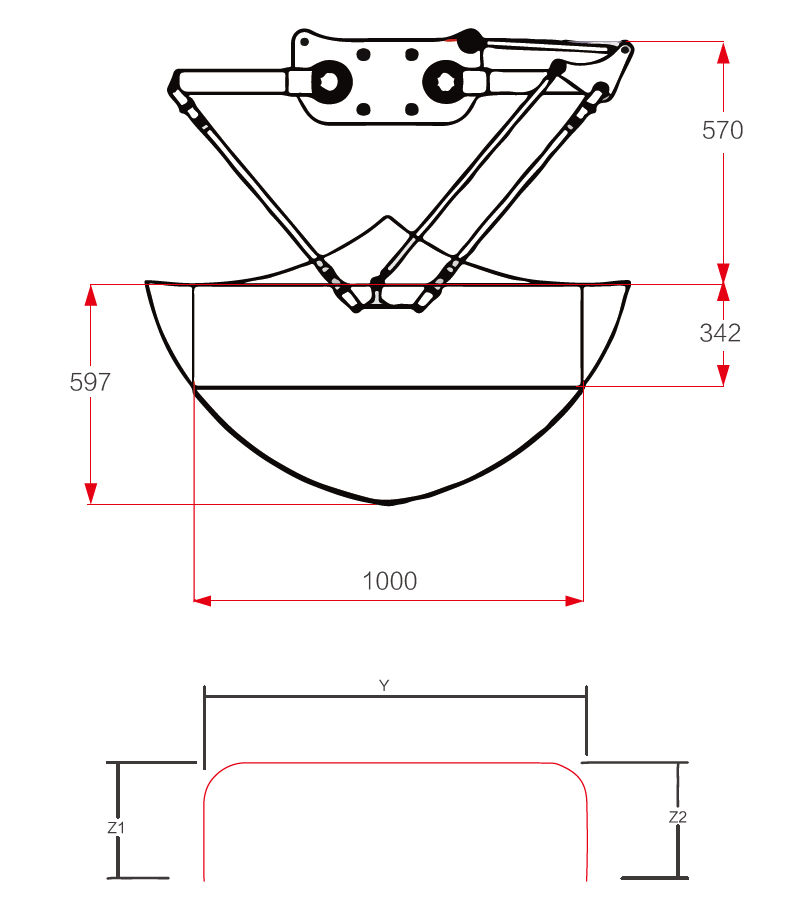

Rated working range：ø 1000x340mm
Payload※：30kg
Pick and place actions：maximum.40/50P/min
Position repeatabilityX,Y,Z*：±0.3mm
Protection：IP65
Noise Level：<70dB(A)
Weight：75kg
